Why Texture Differences Cause Major Color Matching Issues

In manufacturing, one of the most persistent quality challenges is color matching. A customer sends a Pantone chip, the lab formulates a match, the first batch looks perfect, and then batch number three looks completely different. The formula has not changed. The pigment is the same. So what went wrong?

The answer is rarely the formula. The answer is almost always texture.

The Core Problem: Pantone Is Not Paint

Pantone is a printed reference standard, CMYK offset lithography on high-quality white paper. Paint and plastic use pigment dispersion in entirely different media with different optical properties. A direct one-to-one translation is never achievable.

Material Accuracy Leaderboard

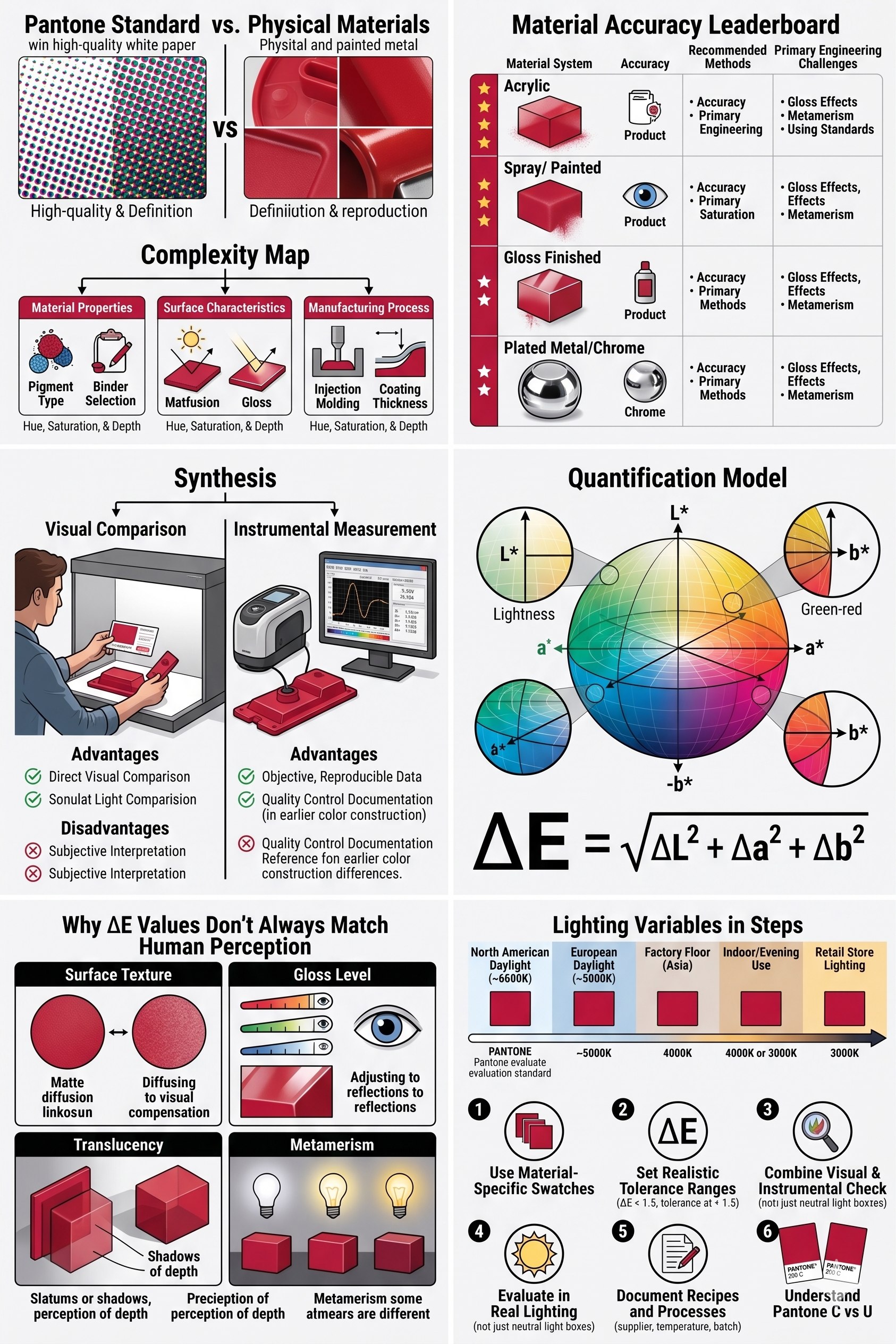

The infographic above illustrates the fundamental gap. When translating Pantone standards to physical materials, accuracy drops significantly depending on the material system:

Even with careful formulation, direct translation from Pantone to real-world materials is inherently limited. The Material Accuracy Leaderboard shows that non-porous, uniform surfaces like acrylic achieve the highest accuracy, while reflective surfaces like chrome present the greatest challenges.

Complexity Map

The Complexity Map reveals why color matching is so difficult. Three columns of factors interact simultaneously:

• Material Properties: Pigment type and binder selection affect hue, saturation, and depth
• Surface Characteristics: Maturation and gloss level shift how color is perceived
• Manufacturing Process: Injection molding and coating thickness create additional variables

All three columns flow into the same outcomes: changes in hue, saturation, and depth. This means that even if you control the pigment perfectly, surface and process variations will still shift the final color.

Why Identical Pigment Looks Different

Consider two metal panels coated with the exact same paint formula at the exact same thickness. One has a smooth, mirror-like finish. The other has a textured, orange-peel surface. Under the same lighting, they will appear as different colors, even though the pigment concentration is identical.

Here is why this happens:

1. Effective Surface Area Changes

A textured surface exposes more actual pigment particles to light compared to a smooth surface. This increases both absorption and scattering, shifting the perceived color. The same amount of pigment is distributed across a larger effective surface area, altering how light interacts with the coating.

2. The Shadowing Effect

Texture creates micro-valleys and micro-peaks. Valleys cast tiny shadows that lower the L-star lightness reading, making the color appear darker. Peaks catch more light, appearing lighter. A colorimeter averages these readings silently, but the human eye sees both shadows and highlights simultaneously, creating a fundamentally different visual perception than what the instrument reports.

3. Gloss and Sheen Shift

Rough texture equals matte. Smooth texture equals shiny. The same pigment, different optical behavior. Gloss level directly affects how light reflects off the surface, which our eyes interpret as a color shift. This is why a Delta-E measurement taken on a smooth lab sample may not match what you see on a textured production part.

The Core Physics: How Texture Affects Color

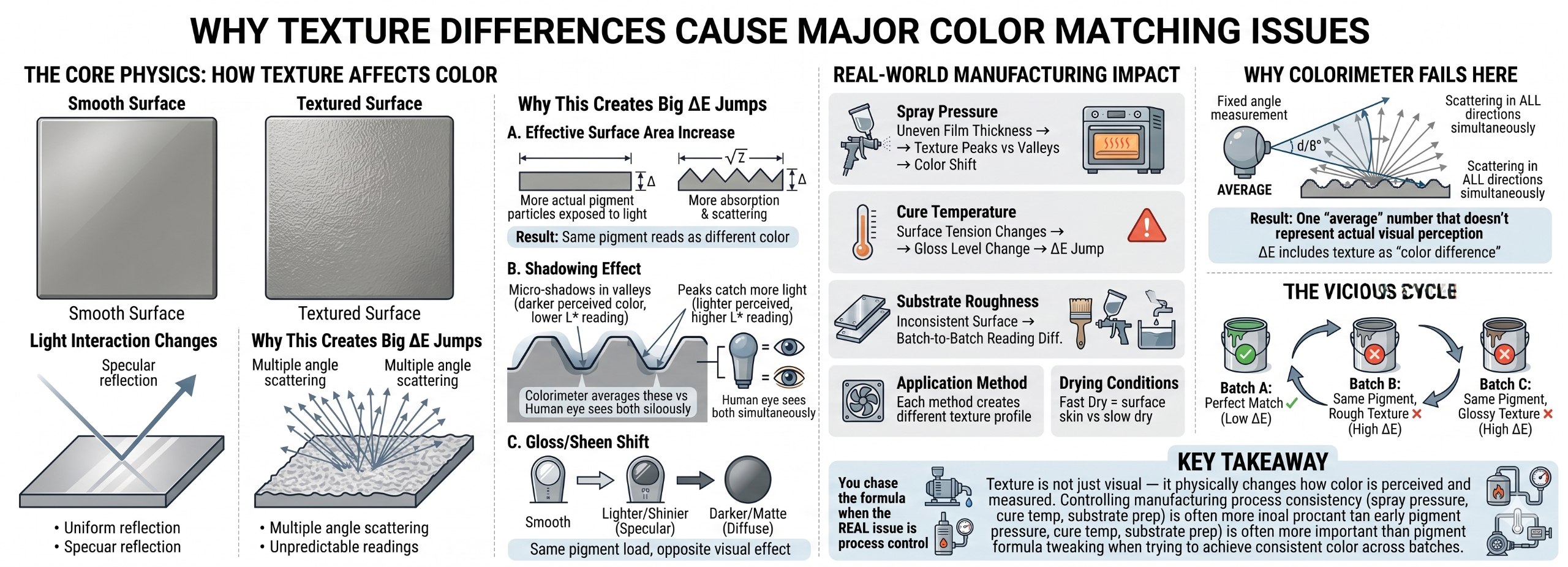

The infographic above shows the fundamental optics. On a smooth surface, light undergoes specular reflection, creating uniform reflection and specular reflections. On a textured surface, multiple angle scattering occurs, creating unpredictable readings.

Light Interaction Changes

• Smooth surface: Light reflects uniformly, producing consistent color readings
• Textured surface: Light scatters in multiple directions, creating shadowing and highlighting effects that shift perceived color

This is not a measurement error. It is physics. The same pigment load produces different visual results because the surface geometry changes how light interacts with the coating.

Why Delta-E Values Do Not Always Match Human Perception

The CIELAB color space quantifies color using three dimensions: L-star (lightness), a-star (green-red), and b-star (blue-yellow). The Delta-E formula calculates the Euclidean distance between two colors in this space:

Delta-E = square root of (Delta-L-star squared + Delta-a-star squared + Delta-b-star squared)

However, this mathematical model has limitations when applied to real-world textured surfaces:

Four Factors That Break the Delta-E Model

1. Surface Texture: Matte diffusion versus diffusing to visual compensation creates shadows of depth that instruments cannot detect
2. Gloss Level: Adjusting to reflections changes how color is perceived under different viewing angles
3. Translucency: Shadows or perception of depth in translucent materials creates visual differences that Delta-E cannot capture
4. Metamerism: Colors that match under one light source may appear completely different under another. Some areas are different, some are the same, depending on the spectral power distribution of the light source

Why Colorimeters Fail in Real-World Conditions

A colorimeter is designed to measure color difference, not texture. It takes a fixed-angle measurement and averages the light scattered in all directions simultaneously. The result is one average number that does not represent actual visual perception.

As shown in the infographic, the colorimeter’s fixed-angle measurement captures scattering in all directions simultaneously, producing an “average” number that does not represent actual visual perception. The human eye, by contrast, sees peaks and valleys, shadows and highlights, all at once.

The Vicious Cycle

This creates a dangerous feedback loop in manufacturing:

1. Batch A: Perfect match, low Delta-E
2. Batch B: Same pigment, rough texture, high Delta-E
3. Batch C: Formula adjusted to compensate, now wrong color on smooth surface

You chase the formula when the real issue is process control.

Manufacturing Variables That Destroy Color Consistency

Five real-world manufacturing factors directly affect surface texture, and therefore color perception:

The pattern is clear: process variables affect texture, and texture affects color perception.

Measurement: Instrument vs. Eye

The synthesis section of the infographic compares two approaches:

Visual Comparison

Advantages:

• Direct visual comparison under real conditions
• Sonulab light comparison simulates end-use environment

Disadvantages:

• Subjective interpretation varies by observer
• Difficult to document for quality control records

Instrumental Measurement

Advantages:

• Objective, reproducible data
• Quality control documentation supports traceability

Disadvantages:

• Quality control documentation may reference earlier color construction differences that no longer apply
• Cannot capture texture-driven perception differences

Neither approach alone is sufficient. The most reliable workflow combines both.

Lighting Variables: The Hidden Factor

The infographic highlights a critical insight: Pantone evaluation standards use approximately 6600K daylight, but real-world environments vary dramatically:

A color that matches perfectly under 6600K daylight may look completely wrong under 3000K retail lighting. This is why metamerism is such a critical concern in color matching.

Recommended Workflow: A Six-Step Process

Based on the analysis of both infographics, the most effective approach follows this sequence:

1. Use Material-Specific Swatches: Do not rely on Pantone paper chips for non-paper substrates. Create physical swatches that match your actual material system.

2. Set Realistic Tolerance Ranges: Define Delta-E tolerance at less than 1.5, with acceptance tolerance at plus 1.5. Understand that tighter tolerances may not be achievable for textured surfaces.

3. Combine Visual and Instrumental Check: Do not rely solely on neutral light boxes. Evaluate under multiple lighting conditions from 6600K down to 3000K.

4. Evaluate in Real Lighting: Test under actual end-use conditions, not just controlled laboratory environments.

5. Document Recipes and Processes: Record supplier information, temperature settings, and batch parameters. Process documentation is as important as pigment formulation.

6. Understand Pantone C versus U: Coated versus uncoated paper standards behave differently. Choose the appropriate reference for your application.

Synthesis: The Complete Picture

When we combine the insights from both infographics, a clear picture emerges:

• Pantone is a reference, not a recipe. It tells you the target color, not how to achieve it on your specific material.
• Texture is physics, not aesthetics. It changes how light interacts with pigment, fundamentally altering color perception.
• Delta-E is a guide, not a gospel. It measures color difference mathematically but cannot capture human visual perception.
• Process control beats formula tweaking. Controlling spray pressure, cure temperature, substrate preparation, and drying conditions is often more important than adjusting pigment ratios.
• Lighting is the final arbiter. A color that matches in the lab may fail in the store if lighting conditions differ significantly.

The Bottom Line

Texture is not just a visual characteristic. It physically changes how color is perceived and measured. The same pigment load on a smooth surface versus a textured surface will produce different Delta-E readings, different visual impressions, and different customer acceptance outcomes.

You may chase the formula when the real issue is process control. Controlling manufacturing process consistency, spray pressure, cure temperature, substrate preparation, and drying conditions, is often more important than pigment formula tweaking for achieving consistent color across batches.

The most consistent color comes from the most consistent process.

What color matching challenges have you encountered in your manufacturing environment?
